IP67 Metal Momentary Push Button Switch , 22mm Momentary Push Button 2NO 2NC 8 Pin

Name: IP67 Metal Momentary Push Button Switch 22mm Momentary Push Button 2NO 2NC 8 Pin
Brand: YUESHUN
Price: 1 USD

Brand Name : YUESHUN

Model Number : JS22F-11

Certification : CE RoHS

Place of Origin : Wenzhou, China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T to our company account or by paypal

Supply Ability : 5000Pcs/Day

Delivery Time : 3-7 work days

Packaging Details : The product is packed in foam box to prevent damage during transportation.

Max. voltage : 250V AC

Max. current : 5A

Application : universal

Contact Configuration : 1NO 1NC OR 2NO 2NC

Weigh : 30g

Terminal type : Pin Termlmal

Contact Now

22mm Metal IP67 Momentary Push Button Switch 2NO 2NC 8 Pin Termlmal electrical equipment switches

Product Description

- This is Metal push button,which is durable for longstanding press, not easily damaged. You can ask for the fllowing materials: stainless steel, Gold plated brass , Nickel Plated Brass, Zn-Al Alloy.
- Stainless steel and waterproof pushbutton switches are the best choice for outdoor machinery, various additional electric machinery. The pushbutton is outstanding in materials and long life.
- Each of our products is equipped with waterproof type 0 rubber ring, which is waterproof, but can not be used in water.Otherwise, the product will not work properly soon.

Product Specification

Model Number	JS22F-11
Mounting Hole	22mm
Max.Switch Rating	Ith : 5A Ui : 250V AC
Material	Body Material: Stainless Steel or Nickel Plated Brass or Black Oxidized Aluminum
	Button Material: Stainless Steel or Nickel Plated Brass or Black Oxidized Aluminum
	Contact Material: Silver Alloy
	Base Material: PBT
The Front Shape	Flat Round Head
Terminal Type	Pin Termlmal
Switch Operation	Momentary
Contact Configuration	1NO
Mounting panel thickness	1-8 mm
Operation Distance	About 0.5 mm
Protection Level	IP65
Operating Temp	-20℃～+55℃

Product Tags:

momentary contact push button switch

metal push button switch momentary

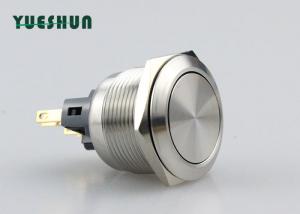

IP67 Metal Momentary Push Button Switch , 22mm Momentary Push Button 2NO 2NC 8 Pin Images
