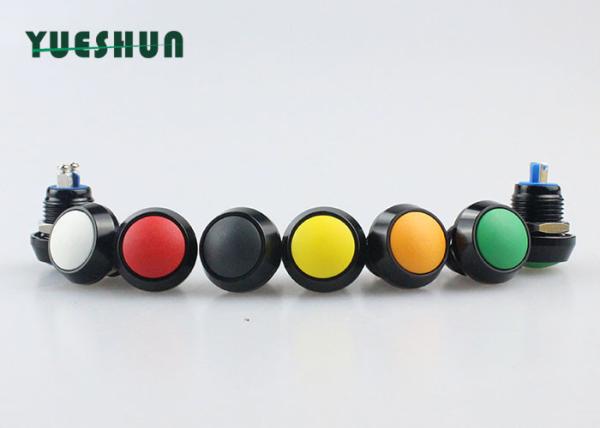

Mini Momentary Push Button Switch , Momentary Switch Normally Open Waterproof

Name: Mini Momentary Push Button Switch Momentary Switch Normally Open Waterproof
Brand: YUESHUN
Price: 1 USD

Brand Name : YUESHUN

Model Number : JS12B-10/S series

Certification : CE RoHS

Place of Origin : Wenzhou, China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T to our company account or by paypal

Supply Ability : 5000Pcs/Day

Delivery Time : 3-7 work days

Packaging Details : The product is packed in foam box to prevent damage during transportation.

Max. voltage : 36V DC

Max. current : 2A

Terminal material : silver alloy

Panel mounting : 12mm

Mounting panel thickness : 1-6 mm

Operation Distance : About 2.5 mm

Contact Now

Oxidized Aluminum 12mm Momentary Push Button Switch Mini Normal Open Push Button Switch

Product Description

- Here are two choice for Stainless steel: 316 or 304, better corrosiveness resistance and Oxidation resistance; Colors for Zn-Al Alloy: Black, Green, Yellow, Blue, Red. Two choice for Brass: Nickle plate brass or gold plated brass.
- Anti-vandal Push Button Switch can be applied to car motorcycle modificine ,electric equipment ,appliance,machine , home Lamps and so on, whcich is durable and decent.
- The design of the push button switch can effectively prevent the infiltration of dirt, dust and water, allowing the button to have a longer life.

Product Specification

Model Number	JS12B-10/L series
Mounting Hole	12mm
Max.Switch Rating	Ith : 2A Ui : 36V DC
Material	Body Material: Black Oxidized Aluminum
	Button Material: Black Oxidized Aluminum
	Contact Material: Silver Alloy
	Base Material: PBT
The Front Shape	Ball Round Head
Terminal Type	Pin Termlmal or Screw Termlmal
Switch Operation	Momentary
Contact Configuration	1NO
Mounting panel thickness	1-6 mm
Operation Distance	About 2.5 mm
Protection Level	IP65
Operating Temp	-20℃～+55℃
