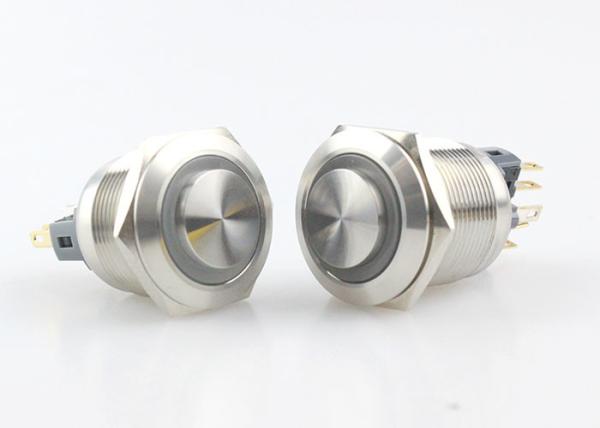

19mm Illuminated Push Button Light Switch Momentary Type

Name: 19mm Illuminated Push Button Light Switch Momentary Type
Brand: YUESHUN
Price: 1 USD

Brand Name : YUESHUN

Model Number : LA19F-11EY

Certification : CE RoHS

Place of Origin : Wenzhou, China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T to our company account or by paypal

Supply Ability : 5000Pcs/Day

Delivery Time : 3-7 work days

Packaging Details : The product is packed in foam box to prevent damage during transportation.

Led Type : Ring Power Symbol

LED life : More than 40,000 hours

Protection Level : IP 67

Mechanical life : More than1,000,000 cycles

Weigh : 30g

Terminal type : Pin Termlmal

Contact Now

Metal 19mm Waterproof Push Button Switch LED Illuminated angle eye illuminated switches push button

Product Description

- The antuator for the button can be flat, high or round which conform to fingers . When the actuator is pressed, it touches with the stationary contacts, causing the action to work. The self-locking(latching) ones keep the position you press it, the momentary ones spring to the original position, flat or high.
- Enclosure Material: Stainless Steel;High quality metal material & IP65 waterproof protection can be used in wet or dusty enviroment.
- Outside color: 1. Stainless steel 2. Nickle plated brass 3. Gold plated brasss 4. Black Zin-Al
- LAMP color: 1. Red 2. Green 3. Blue 4. Yellow 5. Orange 6. White 7. Purple
- LAMP voltage: 3V 6V 12V 24V 36V 110V 220V 380V for choose.

Product Attribute

Mounting hole Diameter	19mm	Mounting Panel Thickness	1-10 mm
Max.Switch Rating	5A / 250V AC	Protection Level	IP67
Operation type	Momentary Latching	Contact Configuration	1NO + 1NC 2NO + 2NC
Body Material	Stainless steel Oxidized Aluminum	Operation Distance	About 3.1 mm
LED	LED Color	Red,Green,Yellow,Orange,Blue,White,Purple or Double color mixing Can be customized.
	Led Voltage	3V 6V 12V 24V 36V 110V 220V are available.
	LED Type	Angle eye Symbol
